Description :

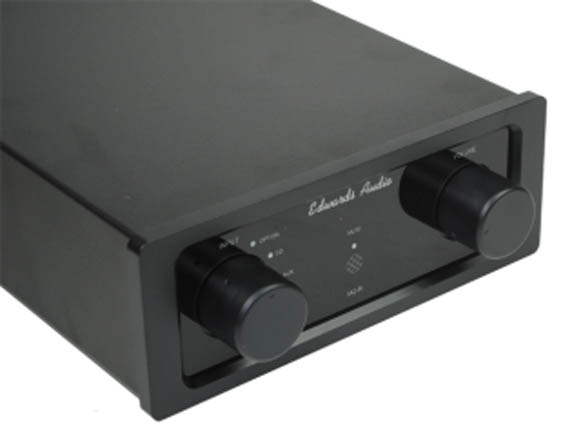

The revolutionised Edwards Audio IA6 Integrated Amplifier is compact with sturdy and classic look.
Essentially, this is a smaller version of our new IA7 with remote control over volume and mute functions. It has an improved linear power supply which is a custom wound 250VA toroidal transformer. With many years of work and development with our transformer supplier, the result is a guaranteed ‘silent’ transformer, which will be a sweet sound to anyone’s ear. This new and improved transformer increases the power output to 60W, and improves current and drive making it capable of driving almost any speaker out there with ease.
The new IA6 has DC blocking on its AC input, which removes any unwanted DC on the incoming mains supply. It features a back lit GREEN LED acrylic front panel display with a 9mm thick custom machined outer frame. With no buttons on the front it gives an uncluttered feel to the amplifier. The smooth turning controls for the volume and input selection are via 40mm dia turned aluminium control knobs, which are finished in a black anodised bead blasted finish.
It has a total of 5 inputs: 4 of which are line-in, including a single pair of outputs for recording purposes, and one is an OPTIONAL RIAA MM board for use with MM cartridges like our C100. There is also an added option for a Pre-amp output for use in active or multi-amp systems. A 3.5mm auxiliary jack is also included for other sources.
The IA6 makes an ideal partner with our all new SP6 bookshelf loudspeakers, and equally the all new forthcoming TT6 turntable when plugged directly into the OPTIONAL internal custom designed RIAA MM input board. This makes for a very well balanced and solid musical system who’s performance belies it’s modest price tag.
Specifications :
Output into 8 Ohms/4 Ohms both channels driven |
60W /95W |
Power bandwidith +/-1.5dB |
20-20kHz |
HF Distortion |
0.01%@ 20kHz@ 1W |
Signal to noise ratio Ref 1W–A Wtd |
88dB |
RIAA Card (OPTION) gain 40dB |
47K with 120pF |
Stereo separation |
better than 66dB – 20-20kHz |
Input Loading – Line level |
27K |
Dynamic Range |
>110dB |
Output impedance |
<0.1 Ohms |
Max output level burst 5mSec 1kHz one channel |
80W into 8 Ohms |
Dimensions WxHxL |
240 mm x 87.5mm x 325mm (excluding the knobs) |
Weight packed / unpacked |
6.15kg/5kg |
Power consumption (idle) |
30W |
Miscellaneous :
Made in |
UK |
Warranty Period |
1 Year |
Retail Price |
SGD2185 |
Product information :
http://www.talkelectronics.com/amplifiers-2/edwards-audio-ia6-integrated-amplifier/
|
