STATUS - AVAILABLE
Click here for more pictures
Description :

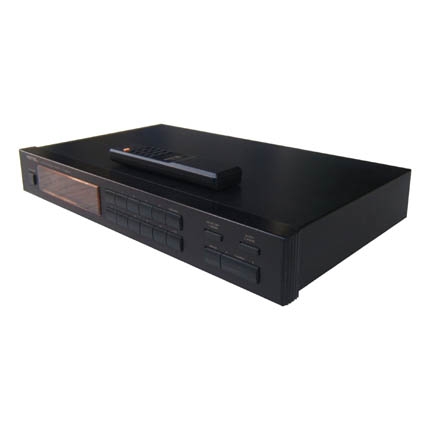

The Rotel RT-940AX tuner is designed to offer life like sound and is a natural extension to the love of music. Introduced and built between 1995-2001, the RT-940AX offers up to 20 preset radio stations in the memory which is alot. Despite its simple looks and not having a large number of service functions, the tuner is not simple. Being produced by the Rotel firm which is known for designing and manufacturing high quality, high performance audio electronics for more than 30 years, this tuner has very good characteristics that ensures reliable reception of radio stations and high-quality music to the hifi system. It is also equipped with a remote control for convenience. The Rotel RT-940AX sounds clear and detailed, with none of the horrible compression that people seem to get normally with tuners. One peak inside the chassis shows a large circuit board with plenty of build quality. Stereo broadcasts sound defined. AM reception is also good. Even before connecting the FM or AM inside antenna wires the reception seems near perfect.
Specifications :
FM Section (75 ohm antenna)
Usable Sensitivity.............................12.5dBf/1.2uV (75 ohms)
50dB Quieting Sensitivity..................11dBf/2uV (75 ohms) (Mono)
...................34.5dBf/30uV (75 ohms) (Stereo)
Signal to Noise Ratio @ 65dBf...........75dB (Mono)
...........70dB (Stereo)
Harmonic Distortion @ 65dBf, 1kHz...0.08% (Mono)
....0.3% (Stereo)
Frequency Response........................30Hz-15000Hz +/-1.5dB
Stereo Separation.............................36dB/100Hz, 40dB/1kHz, 30dB/10kHz
Output Level.....................................720mV
Sub Carrier Product Ratio..................60dB
Alternate Channel Selectivity..............63dB (+/-400kHz)
Capture Ratio...................................1.5dB
Spurious Response Ratio..................95dB
Image Response Ratio......................65dB
IF Response Ratio............................90dB
AM Suppression Ratio......................60dB
Antenna Input Impedance..................75 ohm
AM Section (Loop Antenna)
Usable Sensitivity.............................350uV/m
Selectivity........................................27dB
Signal Noise Ratio............................60dB
Image Response Ratio......................40dB
IF Response Ratio............................40dB
Others
Power Requirement..........................115V AC 50/60Hz
...........................230V AC 50/60Hz
Power Consumption.........................10 Watts
Dimensions(w x d x h)......................44 x 28.5 x 7.5 cm
Weight............................................4kg per side
Miscellaneous :
Matching..........................................Rotel RCD-971 Cd Player
..........................................Rotel RC-980BX Preamplifier
..........................................Rotel RB-980BX Power Amplifier
Remote...........................................Yes
Made In...........................................Taiwan
Condition.........................................8/10 (Decent condition)
Product Information :
http://www.rotel.com/content/manuals/rt940ax_eng.pdf (Manual)
Reviews :
http://www.audioreview.com/cat/other/tuners/rotel/rt-940/prd_124212_1596crx.aspx
http://www.audiosmile.com/forum/showthread.php?t=10810 |
