Description :

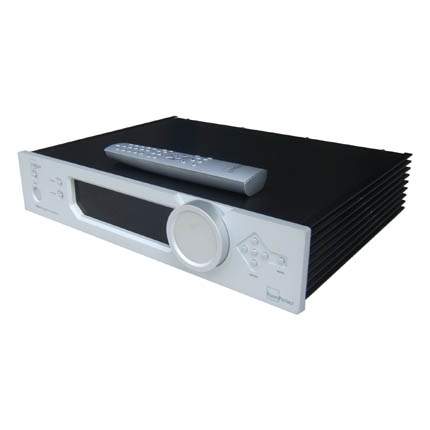

The Lyngdorf DPA-1 is a high-end processor with pre-amplifier features and can also operate as a two-way active crossover. It incorporates the innovative RoomPerfect room correction technology that allows access to the real sound of audio system. The RoomPerfect technology effectively makes rooms with acoustical problems show sensational results. Even though this uses sophisticated room correction system, it is very simple to use. The menu will guide through the calibration and everything needed. Not only because it really manages to correct the imperfections of living rooms, but because it keeps the personality of the loudspeakers nearly intact. It is also a complete digital signal processing control center for designing advanced loudspeaker set-ups. To ensure maximum compatibility and easy connection, the Lyngdorf DPA-1 offers both single ended and balanced inputs/outputs. It has both balanced (XLR) and unbalanced (RCA) analog inputs (one pair and three pair respectively) and five digital inputs including three coaxial RCA-type S/PDIF, one AES/EBU, and one Toslink optical input. There is also a balanced microphone input and a 12-volt trigger for powering up other linked gear. The DPA-1 is delivered preloaded with the latest firmware and can be updated online via computer if and when new firmware is released. Since the DPA-1 was designed around 2006, it lacks a USB input. Its digital inputs can accept resolutions up to 24-bit/192kHz but that its internal processing is performed at 24-bit/96kHz.
The Lyngdorf DPA-1 is fabulously three-dimensional, the subwoofers integrate seamlessly into the whole, and the combined system has dynamic capability and convincing effortlessness. The low frequency, usually masked by room resonances, become highly detailed and well defined. It has a wonderful ability to subtly tailor recordings, providing new musical nuances. Everything is made available and presented in a previously unheard way. It is very sweet and smooth and it delivers more bass many expect. The vocal harmony and the distinct character of voice are captured to perfection. Not only will DPA-1 make system better balanced, more nuanced, and more musical, but it even improves depth and imaging without the need for expensive aesthetically-invasive room treatments. For the absolute majority of music lovers, the Lyngdorf DPA-1 can be the base of the system, irreproachable in its flexibility and completion and with its technology they will have the inevitable problems with room acoustics eliminated.
Specifications :
Audio
Balanced Input Connectors..............3 pin XLR, gold-plated
Balanced Input Impedance...............10kohm
Unbalanced Input Connectors...........RCA(phono) jack, gold-plated
Unbalanced Input Impedance............10kohm
DAC Out Impedance........................50ohm
Input Sensitivity...............................4.4V(2.2V with high sens.)
Unbalanced Output..........................4.4Vrms
Balanced Output..............................8.8Vrms
Frequency Response.......................+/-0.1dB (20-20KHz)
THD + N A-Weighted.......................-103dB (Digital to Analog)
Signal/Noise Ratio...........................-113dB (Digital to Analog)
Dynamic Range...............................-113dB (Digital to Analog)
THD + N A-Weighted.......................-110dB (Analog to Digital)
Signal/Noise Ratio...........................-119dB (Analog to Digital)
Dynamic Range...............................-119dB (Analog to Digital)
THD + N A-Weighted.......................-103dB (Analog to Analog)
Signal/Noise Ratio...........................-113dB (Analog to Analog)
Dynamic Range...............................-113dB (Analog to Analog)
Channel Separation..........................-114dB
Protection
Grounding .......................................Mains Earth, Chassis and Audio Ground connected internally
Over Temperature.............................Mains-Transformer
Mains
Mains Input Connector......................IEC 320 Cold Type
Mains Voltage Range.......................100-240V AC, 50-60Hz
Power Consumption.........................4W(standby), 35W(operation)
Trigger
Trigger Out Connector......................3.5mm(1/8") mono jack
Trigger Out Voltage..........................12V DC
Trigger Out Current...........................50mA
Mechanical
Dimensions(w x d x h)......................45 x 35.5 x 10 cm
Weight............................................8kg
Miscellaneous :
XLR Inputs.......................................Yes
XLR Outputs....................................Yes
Box................................................Yes
Remote...........................................Yes
Manual............................................Yes
Made In...........................................Denmark
Condition.........................................9/10
