STATUS - SOLD
Click here for more pictures
Description :

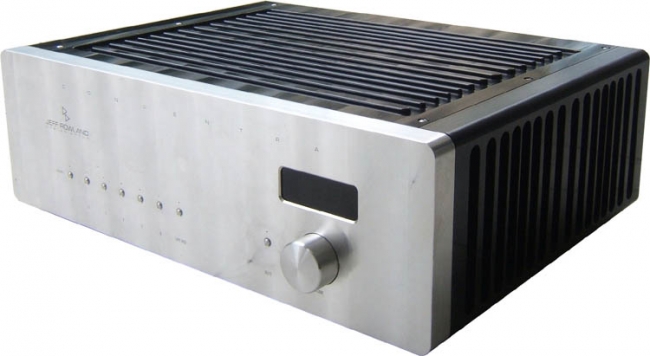

Jeff Rowland has been among the elite high-end manufacturers of transistor preamplifiers and power amplifiers. The Jeff Rowland Concentra II amplifier boasts a truly luxurious level of build and finish. The silver faceplate is a gorgeous diamond milled piece of aluminum 20mm thick. Aluminum is also used for the substantial chassis and top and bottom plates and the solid side panels. The top and sides feature special raised sections and cutouts to combat unwanted resonance. The entire case functions as an airtight heatsink. Artistry, grace, and function remain the basic tenets of the exterior form. The timeless design of the Jeff Rowland Concentra II incorporates features to soothe the senses. Its placid blue display, the gentle fluidity of the volume control, and the smooth curves of the non-resonant chassis combine to form an engaging whole that stimulates the visual and tactile senses as much as the aural. Yet the sculpted exterior is still adept at performing the essential functions demanded of it with high performance: heat dissipation, resonance control, and isolation. Output current capability has been increased by 50% compared to its predecessor, and the unit features better noise and distortion performance. The power supply layout gives a quiet source of power, and also has a separate front-end supply. The layout is circuit board based and features increased common mode rejection as well as offering better isolation between different portions of the amplifier, lowering radiated fields and noise.
The Jeff Rowland Concentra II is a blend of control and power. It creates an authoritative and effortless rhythm and timing while still maintaining the natural musical presentation. It is also crystal clear, with a resolution that goes beyond most amplifier. The involving sound gives the music a nerve and texture. The soundstage is wide and deep that reaches beyond the loudspeakers, and has a three dimensional characteristic. The refinement, smoothness and naturalness with exceptional imaging make it a pure joy to listen. It has great frequency extension on the top and bottom ranges. Where the amplifier excels in the reproduction of human voice and all the subtle nuances in music, it also proves to be extremely capable with a variety of music and relaxing to listen to, the perfect amalgam of the best attributes of solid state and tube amplification. From the quiet opening notes of a jazz ballad through the power of a choral crescendo to the dynamics and punch of live blues, the Concentra II maintains its place in the growing crowd of integrated amplifiers. With its combination of superb sound, pleasing aesthetics and sterling build quality, the Jeff Rowland Concentra II is not only a contender for the best sounding integrated amplifier but is also a desirable example of modern art.
Specifications :
Output Power..................................150 watts at 8 ohms, 250 watts at 4 ohms
Bandwidth.......................................0.1Hz to 160kHz, -3 dB
Slew Rate.......................................30 volts per microsecond
THD................................................Less than 0.01% at rated power
Damping Factor...............................>60, 20Hz to 20kHz
Gain Structure.................................14dB Preamplifier section
.................................26dB Amplifier section
Volume Control Range......................99.5dB
Volume Control Resolution................0.5dB +/- 0.05dB over entire range
Input Impedance..............................36k ohms balanced or unbalanced
Common Mode Rejection Ratio.........Greater than 60dB, 20Hz to 20kHz
Power Consumption.........................150 watts idle; 550 watts maximum
Inputs..............................................Balanced 3 x XLR per channel
..............................................Unbalanced 3 x RCA per channel
Outputs...........................................1 pair 5-way binding posts per channel
..........................................1 pair balanced pre-out via XLR
..........................................1 pair unbalanced pre-out via RCA
Dimensions(w x d x h)......................44.5 x 39 x 15.5 cm
Weight............................................24kg
Miscellaneous :
XLR Inputs and Outputs....................Yes
Remote...........................................No
Made In...........................................USA
Condition.........................................8/10
Product Information :
http://jeffrowlandgroup.com/Technology/ConcentraTech.htm (Manufacturer's Website)
http://jeffrowlandgroup.com/ClassicSpecs.htm#Concentra (Specifications)
Reviews :
http://www.audioreview.com/cat/amplification/integrated-amplifiers/jeff-rowland-design-group/concentra-ii/prd_128599_2717crx.aspx
http://www.audioenz.co.nz/2003/jeffrowland_concentra2.shtml |
