Description :

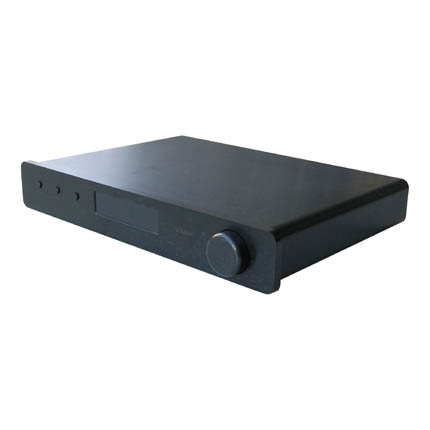

The equipment made by Classe Audio is often associated with superior works because many of them are recognized as classics worth having for many years to come. The Classe Audio DAC1 is one of the most versatile and best sounding DAC with HDCD available. The overall look and feel is clean and clutter-free. It features five digital inputs: 2 coax, 1 balanced AES/EBU, TOSLINK, and ST. UltraAnalog 20-bit DAC's operating in balanced configuration, and provides 8x oversampling for 32/44.1/48kHz. The controls on the front of the unit include digital input, invert phase, and alter display brightness; there is a standby mode as well, which is necessary since there is no master power switch. HDCD and de-emphasis detection indicators are standard, and phase inversion operates entirely in the digital realm.
The Classe Audio DAC1 presents with remarkable clarity, richness, ease and power. The presentation is wide and deep, and marvelously coherent. The sound is lively, quick, and willing to be saucy and forward with the music. While the tonal balance is perhaps lightly cool, it is not aloof, nor harsh or grainy. It is capable throwing a wide soundstage with reasonable depth. The dynamics of music are finely handled and provides excellent transient slap - especially with rock music. It sounds extremely precise sound so poorly recorded musics are not recommended. The Classe Audio DAC1 is a stunning performer, and it's resolution is only bettered by DACs way beyond its price range.
Specifications :
Analog:
Inputs............................................2x coaxial, 1x AES/EBU, 1x TOSLINK optical, 1x ST optical
Controls.........................................Digital input, phase select, display brightness and standby
Sample Rate..................................32 kHz, 44.1 kHz, and 48 kHz
Digital-to-Analog Conversion.............UltraAnalog 20-bit DACs in balanced configuration
Digital Filter....................................8x oversampling, HDCD decoder and filter
Analog Filter...................................Passive linear phase
Frequency Response.......................20 to 20 kHz +-0.3dB
Digital:
Output............................................Single ended (RCA) and Balanced (XLR)
Output Impedance...........................50 Ohms
Frequency Response.......................20 to 20 kHz +-0.1dB
Harmonic Distortion.........................Less than 0.003% @ 1 kHz
Output Levels..................................(RCA): 1.52 Vrms (Normal CD), 3.04 Vrms (HDCD)
..................................(XLR): 3.04 Vrms (Normal CD), 6.08 Vrms (HDCD)
Signal-to-Noise Ratio.......................110dB
Channel Separation.........................123dB @ 1 kHz
Voltage...........................................Factory set 100, 120, 220, 240 VAC
Power Consumption.........................25 Watts
Dimensions(w x d x h)......................48.5 x 36 x 8 cm
Weight............................................8kg
Miscellaneous :
XLR Input........................................Yes
XLR Outputs....................................Yes
Remote...........................................Yes
Made in...........................................USA
Condition.........................................6/10
