STATUS - AVAILABLE
Click here for more pictures
Description :

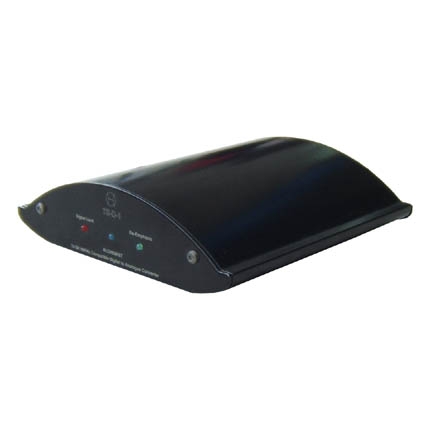

The Alchemist TS-D-1 named after its striking "turtle-shaped" design, is assembled from an aluminum extrusion sealed below with a steel base plate. Capping the otherwise open ends are two slabs of copper-clad Printed Circuit Board which endow the TS-D-1 with all-round screening from interference. The back-panel bears left and right analogue outputs, co-axial and optical inputs and the three-pin power socket which connects to the external potted transformer. A still-rare addition is the Record Output, which loops data stream to a CD or MiniDisc recorder without the need to disconnect the TS-D-1. The silicon cylinders purring away under bonnet are able to lock on any signal with a sampling frequency between 16kHz and 96kHz.
The Alchemist TS-D-1 demonstrates fine clarity and brings out fine and subtle details in music, presented in a natural and relaxing manner. The bass is tight and well controlled, and highly persuasive with acoustic material. The vocals are rock-steady and guitar is closer to life-size, and a bit soft on rock and dance. The mid range is beautiful and treble is sweet and airy. Using the Alchemist TS-D-1 is a smart and cost efficient move to have a better overall sound quality, topped with a stylish design with a good build quality.
Specifications :
DAC Type.......................................24 Bit, 96KHz, 8X Oversampling
Sampling Rates...............................All rates in range 16kHz - 96kHz
Data Types.....................................16, 18, 20 and 24 Bit SPDIF
0dB Level........................................2V rms
Signal/Noise Ratio...........................104dB
Frequency Response........................4Hz to 21kHz
Dynamic Range...............................111dB
Digital Filter.....................................Delta Sigma multi-Layer
Output.............................................2.00V at 0dB
THD+N........................................... -96dB
Master Clock...................................256Fs
De-Emphasis (44.1kHz)....................Digital domain <0.02dB error
Dimensions(w x d x h)......................15.5 x 17 x 4.5cm
Weight............................................1kg
Miscellaneous :
Made in...........................................UK, England
Condition.........................................8 / 10
Product Information :
http://www.alchemisthifi.info/ranges/tsd/alchemist_tsd_tsd1_DAC.htm (Manufacturer's Website)
Reviews :
http://www.alchemisthifi.info/ranges/tsd/documents/tsd1_dac_hifiworld_review_p1.htm
http://www.alchemisthifi.info/ranges/tsd/documents/tsd1_dac_hifiworld_review_p2.htm
http://www.audioreview.com/cat/digital-sources/cd-players/alchemist/ts-d-1/prd_116775_1586crx.aspx |
